Output formats

nf-metro render takes its format from the output extension.

nf-metro render rnaseq.mmd -o rnaseq.svg
nf-metro render rnaseq.mmd -o rnaseq.png
nf-metro render rnaseq.mmd -o rnaseq.webm

--format overrides the extension when you need it to. -o repeats, so one command writes several files:

nf-metro render rnaseq.mmd -o rnaseq.svg -o rnaseq.png -o rnaseq.mp4

Every measurement below comes from examples/rnaseq_sections.mmd, the nf-core/rnaseq map: 54 stations, 191 edges, 6 lines, 1799×696 at its natural size.

Rendered map

SVG

Start here, and only move if something downstream refuses it.

An SVG is vector, so there is no resolution to pick. The same file is a thumbnail, a poster, and a zoomed-in inspection of one section.

The labels are real <text>, which a reader can select, a browser can search, and a screen reader can announce.

One file covers both colour schemes. The chrome colours emit as CSS light-dark(<light>, <dark>) and the root <svg> carries color-scheme: light dark, so the map follows whatever the reader’s OS or host page is set to. You do not export twice. Theming covers how to override that from a host page.

Every SVG also carries its own data manifest: a JSON block in <metadata> plus data-node-* attributes on the drawn elements. That is what lets a host page find the station called STAR and colour it, which is how live progress works.

--animate puts balls on the lines, moved by CSS offset-path. They run when the SVG is opened directly, referenced from an <img>, or inlined into a page.

--animate, inlined into the page. Its colours follow your system theme, where every raster below is baked to one.

Fonts are the one thing an SVG cannot settle by itself, because it names a family and the viewer supplies it. Two flags close that gap:

• --embed-font inlines a WOFF2 subset of Inter as an @font-face block. Adds 28 KB to this map, and the text stays selectable.
• --text-to-paths converts every label to outlines, which removes the font question entirely at the cost of selectable text. Needs pip install "nf-metro[font]".

Embedding goes through the sizing, theming, and namespacing flags in full.

PNG

A still raster, for anywhere an SVG is turned away: a journal submission, a slide, a chat window.

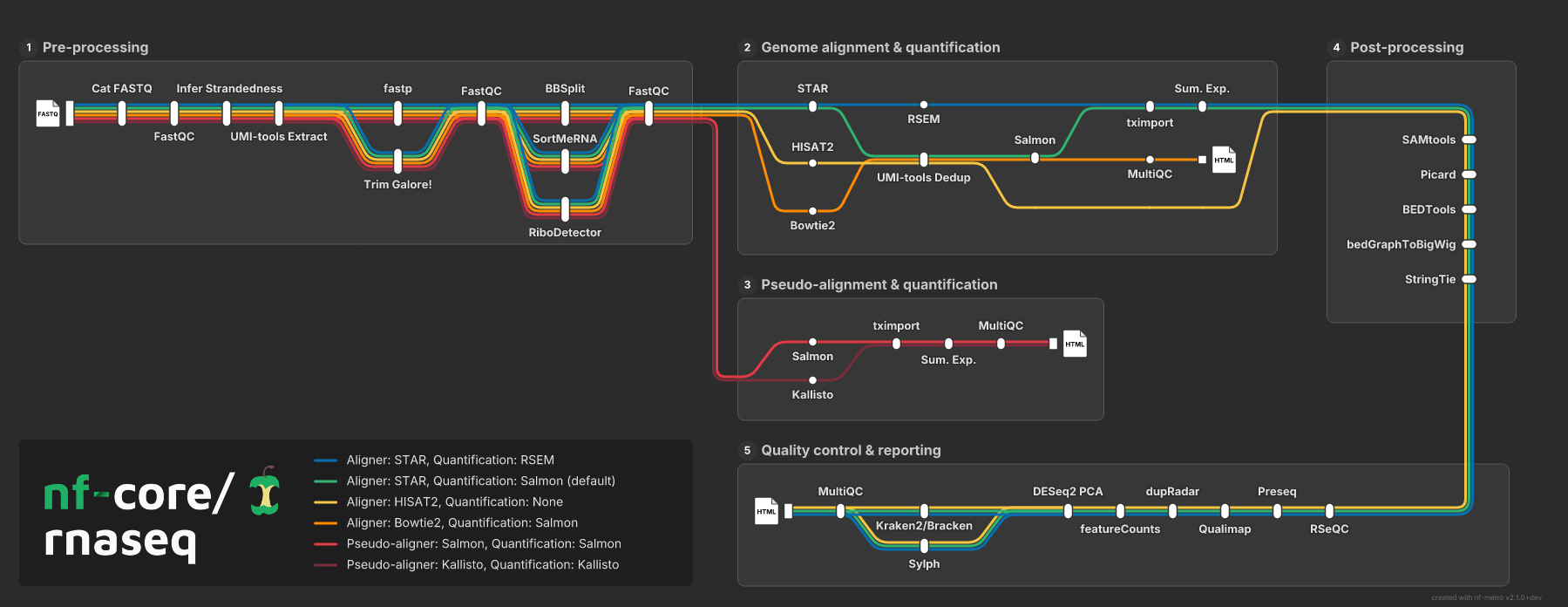

nf-metro render rnaseq.mmd -o rnaseq.png --mode light --scale 2

A rasteriser has no CSS cascade and no viewer colour scheme to consult, so the PNG path settles the picture before drawing it. It bakes one concrete palette, drops the var() chrome properties, and draws the labels with the bundled Inter rather than whatever the machine has installed. The same map therefore rasterises to the same bytes anywhere, which is what makes a committed PNG reviewable in a diff.

Pick the palette with --mode light or --mode dark. Without it the map’s own %%metro mode: applies, then the global default.

Size the output with --scale (default 2, for retina) or --raster-width for an exact pixel width. Neither is --width, which pads the canvas around a map drawn at its natural size instead of resizing the picture.

The same map at --scale 1: 1799×696.

Interactive HTML

--format html writes one self-contained page: the SVG inlined, plus a small JS and CSS layer. No network, no build step.

nf-metro render rnaseq.mmd -o rnaseq.html

Drag to pan, scroll to zoom, hover a station for a tooltip. Clicking a line in the legend isolates it, hides the stations and sections that line does not touch, and zooms to what is left. Esc or Reset restores the full view. An Embed… button hands you copyable inline-HTML, iframe, and static-SVG snippets.

Reach for it when the map is the thing being explored rather than a picture beside some prose.

Looping video

Four formats export the --animate motion as a loop, for the places a CSS animation will not run: a README, a slide, a conference talk.

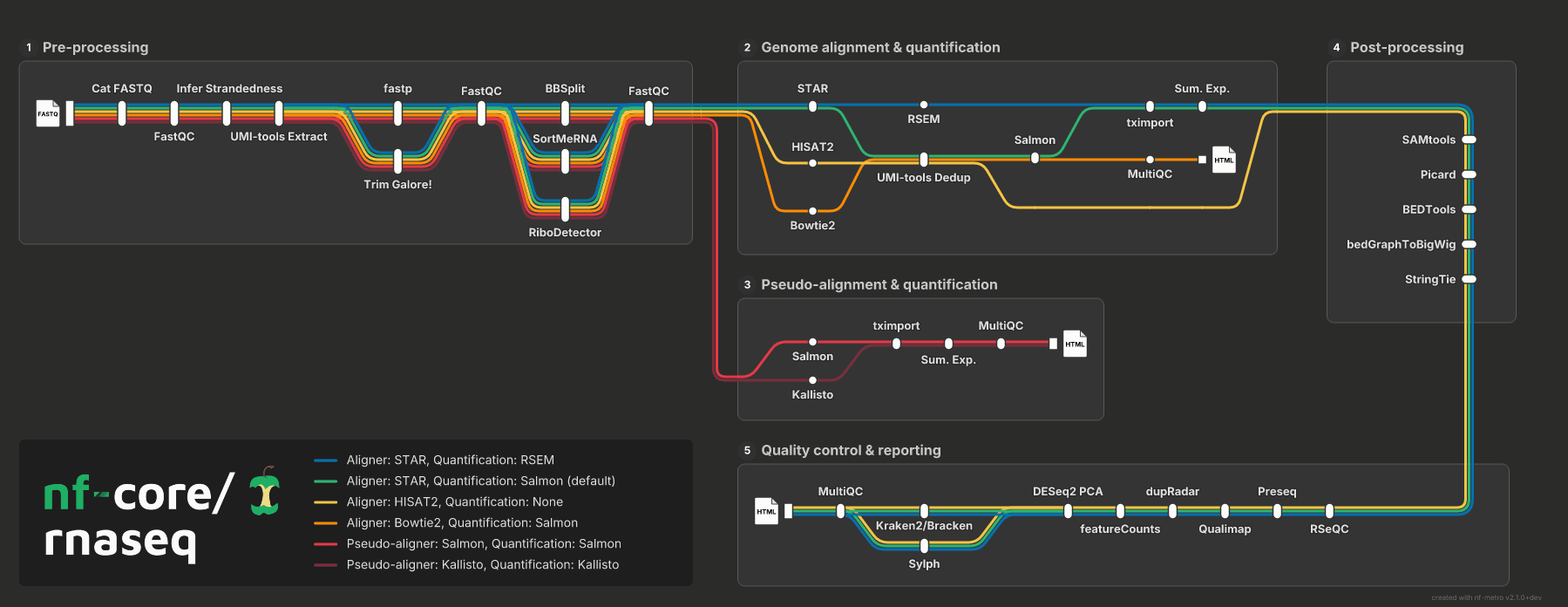

nf-metro render rnaseq.mmd -o rnaseq.gif --duration 12 --fps 20

The same 12-second loop at 20fps, in each of the four containers:

GIF

256-colour palette. Animates inside an <img>.

WebP

Full 24-bit colour. Animates inside an <img>.

MP4

H.264. Needs a <video> element.

WebM

VP9. Needs a <video> element.

The frames are drawn, not screen-recorded. Each ball is sampled from the same motion path the animated SVG drives it along, at the moment of the cycle that frame represents, so the exported motion closely follows the live SVG. The loop runs one full animation cycle and stops a frame short of repeating it, so it wraps without a stutter.

--fps sets the frame rate and --duration sets the loop length, compressing the map’s own animation cycle into it. Leaving --duration off keeps the balls at exactly the speed the SVG moves them, which for a large pipeline can be a 40-second loop. --scale and --raster-width size the frames as they size a PNG, except that a video defaults to natural size where a still doubles.

Nothing is capped. Every frame is a full rasterisation, so a long smooth loop of a large map costs real time; nf-metro quotes the frame count and frame size before it starts, then shows a progress bar. See the CLI reference for the flags.

Which of the four

The split that matters is what element the format needs to play in.

GIF and WebP animate inside an <img>, which means they work in a GitHub README, a markdown file, and anywhere else that renders an image and gives you no <video> tag. Between them, WebP keeps full 24-bit colour with a lossless encode, where GIF quantises the loop to one shared 256-colour palette. GIF plays in everything ever written; WebP wants Safari 14 or newer and trips up some older tooling.

MP4 and WebM are both roughly half the size of the <img> formats, but need a real <video autoplay loop muted playsinline>. Which of the two wins on bytes depends on the clip - they usually land close together, and neither reliably beats the other by much. MP4 decodes everywhere, so it is the safer default, and WebM is worth measuring when you know the audience can play VP9.

No external encoder

All four are muxed in-process by PyAV, which ships FFmpeg in its own wheels. Nothing needs to be installed or found on PATH, the same way resvg-py gives the PNG path a rasteriser without a system library.

At a glance

One loop of the rnaseq map, 12 seconds at 20fps, all at natural size:

Format	Kind	Size	Plays in	Good for
.svg	vector	238 KB	anything	the default: docs, READMEs, embedding
.html	vector + JS	520 KB	a browser	exploring a big map
.png	raster still	138 KB	anything	journals, slides, chat, byte-stable diffs
.gif	raster loop	337 KB	<img>	a README loop that works everywhere
.webp	raster loop	395 KB	<img>	a README loop, full colour, lossless
.mp4	raster loop	217 KB	<video>	slides, talks, a docs page
.webm	raster loop	213 KB	<video>	the same, where VP9 is known to decode

The PNG is at --scale 1 to match the video frames; at the default --scale 2 it is 310 KB. These are one measured snapshot, not a pinned guarantee - the encoder libraries can shift a few percent between versions.

Picking one

• Embedding a map in docs, a README, or an app: .svg.
• Something refuses SVG: .png, with --mode set.
• The map is large and the reader needs to dig into it: .html.
• You want the animation in a README: .gif, or .webp if the colour matters more than reaching every viewer.
• You want the animation in a page or a deck you control: .mp4.
