Monitor studio

Poll the status of an existing Studio session until it reaches a terminal state.

This node continuously monitors a Studio's status, allowing you to trigger automation when the Studio becomes ready or terminates.

Trigger by passing an event message to the input handle. Typically this will include a studio ID to track. The config field Studio ID defaults to msg.studioId which is a default output name from the add studio node.

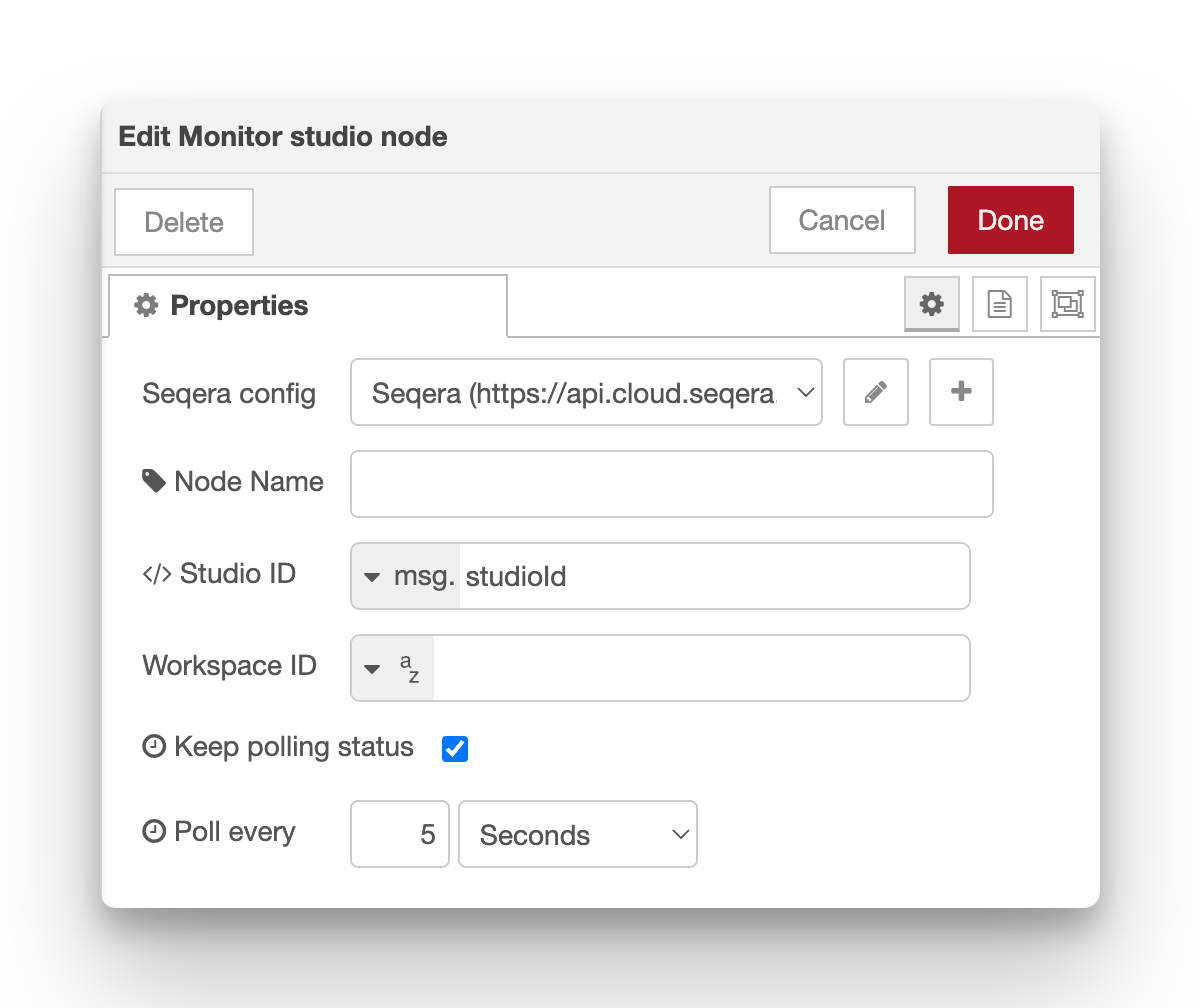

monitor studio node monitor studio node edit panel

Configuration

  • Seqera config: Reference to the seqera-config node containing API credentials and default workspace settings.
  • Node name: Optional custom name for the node in the editor.
  • Studio ID (required): ID of the Studio session to monitor.
    • Defaults to msg.studioId, one of the outputs provided by the add studio node.
  • Workspace ID: Override the workspace ID from the Config node.
  • Keep polling status (default true): Continue polling until the Studio reaches a terminal state (stopped, errored, or buildFailed).
  • Poll interval (default 5 seconds): Frequency of status checks. Can be configured in seconds, minutes, or hours.

Outputs (three)

The monitor node has three separate outputs that fire at different times:

  1. All status checks – Emitted on every poll regardless of state, for monitoring and logging.
  2. Ready to use – Emitted once when the Studio status transitions to running (ready for connections).
  3. Terminated – Emitted when the Studio is no longer running (stopped, errored, or buildFailed).

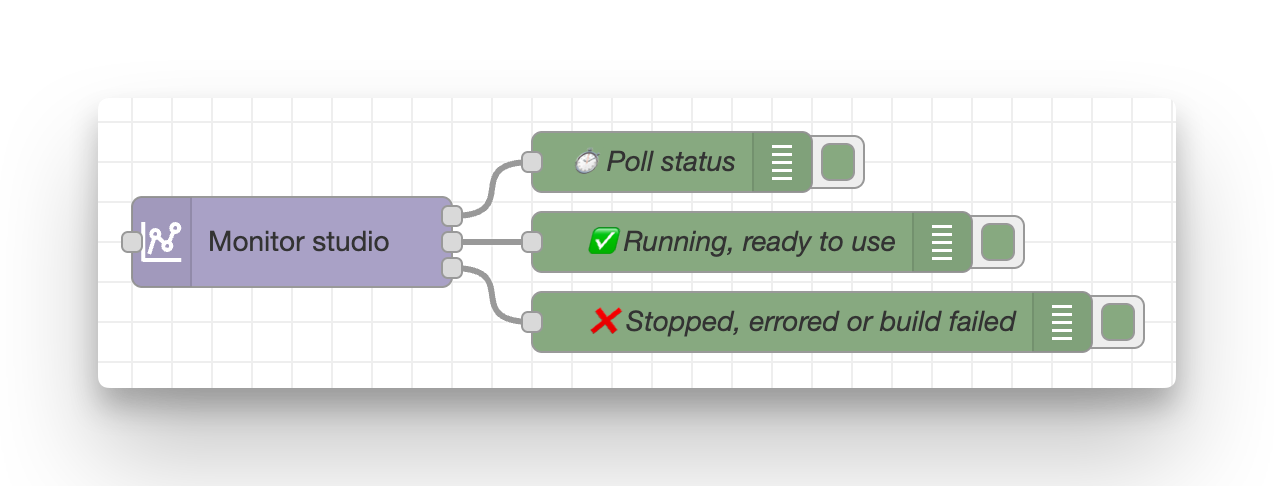

monitor studio node outputs

Each message contains:

  • msg.payload – Full Studio object from the API, including statusInfo with current status details.
  • msg.studioId – ID of the Studio session.

Status Details

The Studio status progression typically follows this sequence:

  • starting → Initial provisioning (yellow)
  • building → Container image is being built (yellow)
  • running → Studio is active and ready to use (blue) - Output 2 fires here
  • stopping → Shutdown in progress (yellow)
  • stopped → Successfully terminated (green) - Output 3 fires here
  • errored → Runtime error occurred (red) - Output 3 fires here
  • build failed → Container build failed (red) - Output 3 fires here

When Keep polling status is disabled, the node performs a single status check and outputs the result immediately without waiting for terminal states.

Tip

Connect Output 2 to subsequent automation (e.g., send a Slack notification when Studio is ready). This output only fires once on the state transition to running, making it perfect for triggering actions without duplicate messages.

Use Output 3 for cleanup or error handling.

Required permissions

Minimum required role: View

See the configuration documentation for a full table of required permissions for all nodes.

Example usage

Send notification when ready

Connect output 2 to a notification service:

  1. add-studio → monitor-studio
  2. monitor-studio (output 2) → slack notification / email / etc.
  3. This notifies users as soon as the Studio is accessible

Example function before notification:

msg.payload = `Studio "${msg.payload.name}" is now ready! Connect at: ${msg.payload.connectUrl}`;
return msg;

Connect output 3 to a different slack message preparation function to also send notifications that something went wrong with the studio, or that it's been stopped.

Notes

  • All outputs preserve custom message properties from the input (e.g., msg._context)
  • The monitor automatically stops when a terminal state is reached (unless keepPolling is false)
