List files

Retrieve objects from Seqera Data Explorer (Data Link).

Data Links provide a way to browse and access files in cloud storage (S3, Azure Blob, Google Cloud Storage, etc.) through the Seqera Platform. This node lists files and folders within a Data Link, with filtering and recursion options.

Trigger a file listing by passing any event message to the input.

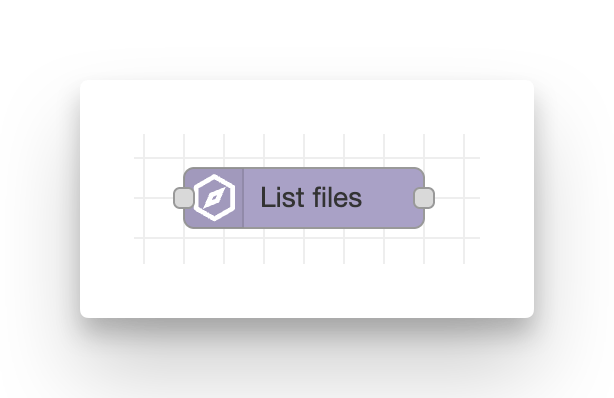

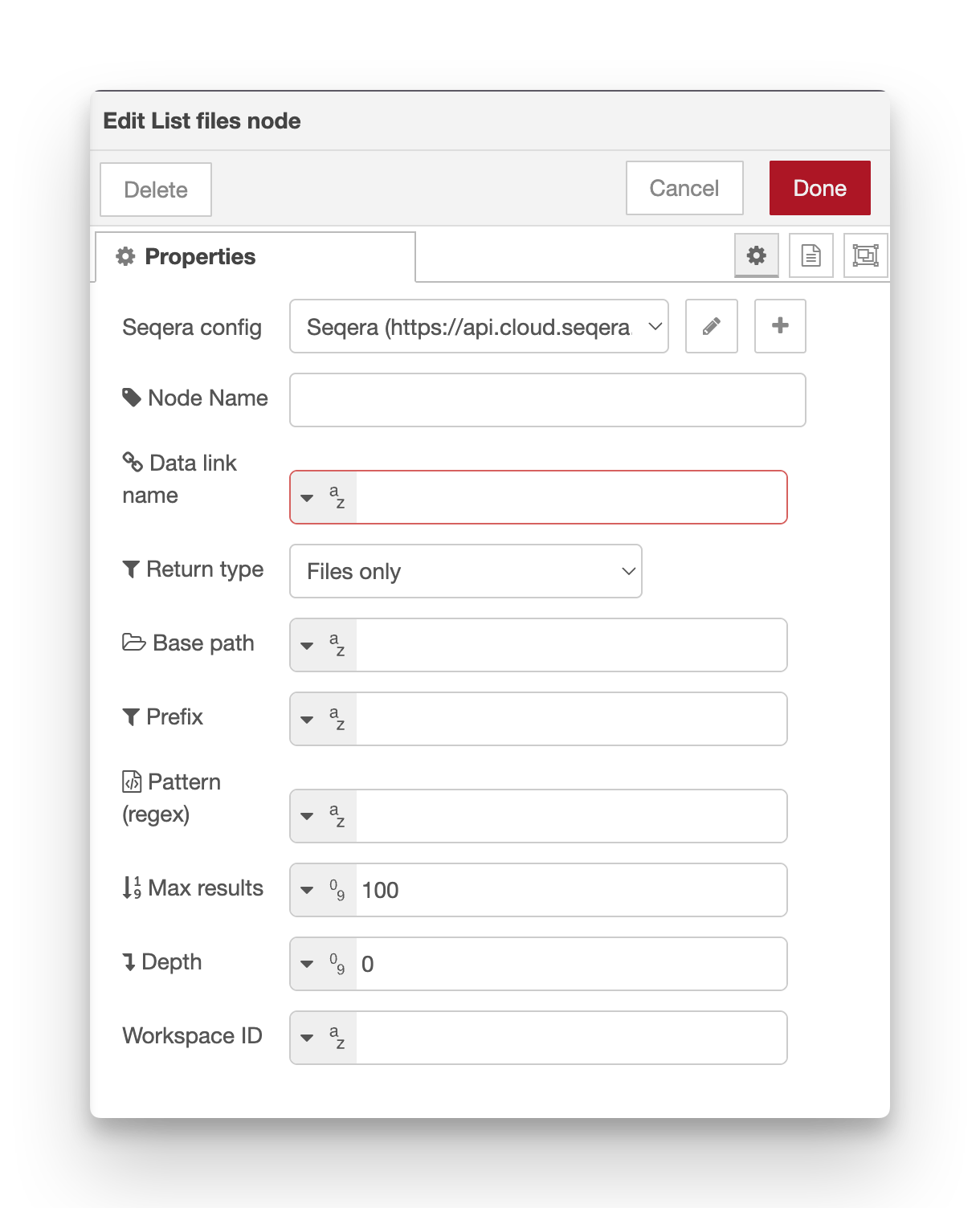

list files node list files node edit panel

Configuration

  • Seqera config: Reference to the seqera-config node containing API credentials and default workspace settings.
  • Node name: Optional custom name for the node in the editor.
  • Data Link name (required): Display name of the Data Link. Supports autocomplete in the node editor.
  • Base path: Path within the Data Link to start from (optional).
  • Prefix: Prefix filter applied to both files and folders.
  • Pattern: Regular-expression filter applied to files after the prefix filter.
  • Return type (default files): files, folders or all.
  • Max results (default 100): Maximum number of objects to return.
  • Depth (default 0): Folder recursion depth
    • 0 = current directory only, negative = unlimited.
  • Workspace ID: Override the workspace ID from the Config node.

Filtering

The node provides two filtering mechanisms:

  1. Prefix filter: Applied to both files and folders. Useful for narrowing to a specific subdirectory or file prefix.
  2. Pattern filter: Regular expression applied only to files after the prefix filter. Useful for selecting specific file types or naming patterns.

These can be combined, for example:

  • Prefix: samples/batch1/
  • Pattern: .*\.fastq\.gz$

This would result in oly .fastq.gz files in the samples/batch1/ directory being listed.

Tip

Prefix is preferred, as this is passed to the Seqera Platform API and happens server side. Pattern is done within Node-RED after results are returned.

Return type

Choose what objects to return:

  • files: Only files (no directories)
  • folders: Only directories (no files)
  • all: Both files and directories

Recursion depth

Control how deep to search subdirectories:

  • 0: Current directory only (no recursion)
  • 1: Current directory plus one level of subdirectories
  • 2, 3, etc.: Multiple levels of recursion
  • -1: Unlimited recursion (search all subdirectories)

Warning

Setting depth to -1 with a large Data Link can result in many API calls and long processing time. Use with caution.

Outputs

  • msg.payload.files – Array of objects returned by the API (after filtering).
  • msg.payload.resourceType – Type of the Data Link resource.
  • msg.payload.resourceRef – Reference ID of the Data Link.
  • msg.payload.provider – Cloud provider (e.g., "aws", "azure", "google").
  • msg.files – Convenience array containing fully-qualified object names (strings only).

Required permissions

Minimum required role: Maintain

See the configuration documentation for a full table of required permissions for all nodes.

Example usage

List all CSV files

  1. Add an inject node to trigger the listing
  2. Add a list-files node
  3. Configure:
    • Data Link name: Your Data Link name
    • Pattern: .*\.csv$
    • Return type: files
  4. Add a debug node to see the results
  5. Deploy and click inject

List files in subdirectory

  1. Set Base path: data/2024/january/
  2. Set Depth: 0
  3. This will list only files directly in that subdirectory

Recursive search for FASTQ files

  1. Set Pattern: .*\.fastq(\.gz)?$
  2. Set Depth: -1
  3. Set Max results: 1000 (or appropriate limit)
  4. This will recursively find all FASTQ files in the Data Link

Process results in a loop

Use a split node after the list-files node:

  1. list-files → split (set to msg.files)
  2. split → your processing logic (runs once per file)
  3. Each iteration receives one file path in msg.payload

Notes

  • Data Link names must match exactly (case-sensitive)
  • The msg.files convenience array contains just the file/folder paths as strings
  • The msg.payload.files array contains full objects with metadata (size, lastModified, etc.)
  • Custom message properties are preserved in the output (e.g., msg._context)
  • Large directories with many files may take time to process with deep recursion
