Add studio

Add a new Studio (interactive workspace) on Seqera Platform.

Seqera Studios provide interactive development environments (like JupyterLab, RStudio, VS Code, Xpra or custom images) running on cloud compute with access to your data.

Trigger a studio addition by passing any event message to the input.

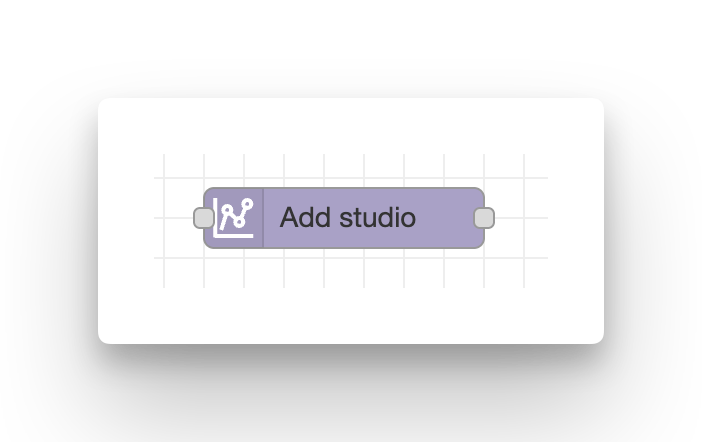

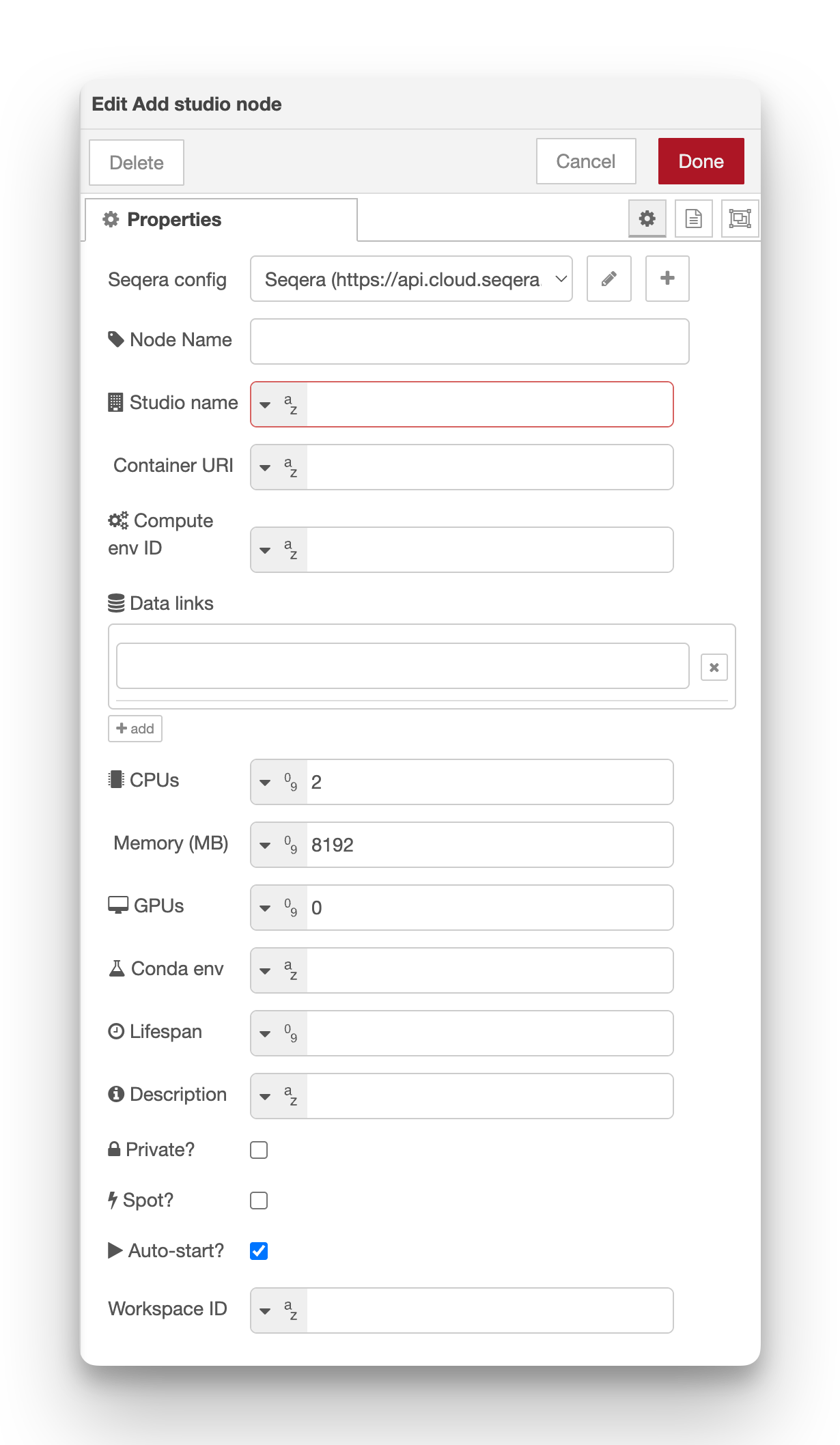

add studio node add studio node edit panel

Configuration

  • Seqera config: Reference to the seqera-config node containing API credentials and default workspace settings.
  • Node Name: Optional custom name for the node in the editor.
  • Studio name (required): Display name for the Studio.
  • Container URI (required): Container image URI for the Studio tool
  • Compute env ID (required): ID of the Compute Environment to run on.
    • Find the Id listed in the Seqera Platforum web UI on the Compute environments listing page.
  • Data links: One or more Data Link names to mount inside the Studio. These appear as accessible paths in the Studio environment.
  • CPUs (default 2): Number of CPU cores.
  • Memory (MB) (default 8192): Memory in MB.
  • GPUs (default 0): Number of GPUs.
  • Conda env: Conda environment configuration.
  • Lifespan: Maximum lifetime before auto-stop (in hours).
  • Description: Optional text description for the Studio.
  • Private? (default false): Whether the Studio is private to the creator.
  • Spot? (default false): Use spot/preemptible instances.
  • Auto-start? (default true): Automatically start the Studio after addition.
  • Workspace ID: Override the workspace ID from the Config node.

Mounting data

The Data links field accepts an array of Data Link names. Each mounted Data Link appears as a directory inside the Studio, allowing direct access to your cloud storage.

Example:

  • Mount my-data-link → appears as /workspace/my-data-link/ in the Studio

Lifespan

Set Lifespan to automatically stop the Studio after a certain time to control costs. For example:

  • 4 = Stop after 4 hours
  • 24 = Stop after 1 day
  • Empty = No automatic stop (field omitted from API request)

Outputs

  • msg.payload – Full API response from the Studio addition.
  • msg.studioId – ID of the added Studio.

Required permissions

Minimum required role: Maintain

See the configuration documentation for a full table of required permissions for all nodes.

Example usage

Add a JupyterLab studio

  1. Add an inject node to trigger addition
  2. Add a add-studio node and configure:
    • Studio name: My Notebook
    • Container URI: public.cr.seqera.io/platform/data-studio-jupyter:4.2.5-0.8
    • Compute env ID: your-compute-env-id
    • CPUs: 4
    • Memory (MB): 16384
    • Data links: ["my-datasets", "my-results"]
  3. Add a debug node to see the output
  4. Deploy and click inject

Implementation details

The node makes a single API call:

  • POST /studios – Adds the Studio with all configuration

The API returns immediately with the Studio ID. The Studio will begin provisioning in the background. Use the Monitor Studio node to track when it's ready.

Notes

  • Studio names must be unique within a workspace
  • Container images must be accessible from the compute environment
  • Data Links must exist before mounting them
  • Set autoStart: false if you want to manually start the Studio later
  • Custom message properties are preserved in the output (e.g., msg._context)
