Simple launch & monitor

examples/01 - Simple launch + monitor.json

01 - Simple launch + monitor.json

This is the most basic example workflow that demonstrates the core Launch workflow and Monitor workflow nodes.

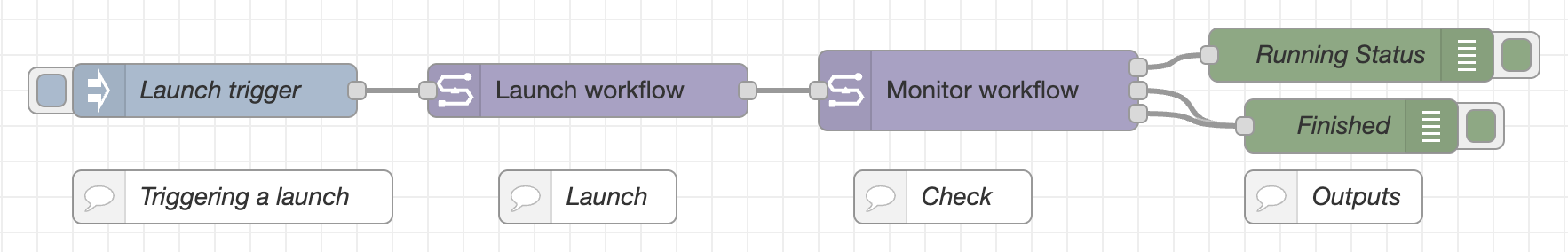

The flow consists of a simple sequence:

  1. Manual trigger - Click the inject node to start the process
  2. Launch workflow - Launches a pipeline using a Seqera Platform Launchpad configuration
  3. Monitor workflow - Continuously polls the workflow status until completion
  4. Debug outputs - Shows the running status updates and final completion message

Setup

To get this example working, you'll need to configure:

  • Seqera configuration - Add your Platform API token and endpoint to both Seqera nodes
  • Launch workflow node - Set the correct launchpad name and update any pipeline parameters as needed

Once configured, click "Deploy" in Node-RED, then click the inject node to trigger a workflow launch. You can follow the progress in the Debug panel on the right sidebar.
