Examples Gallery

Comprehensive examples demonstrating nf-slack features, from basic to advanced.

Overview

The examples are organized into two categories:

• Configuration Examples: 6 examples showing automatic workflow notifications
• Script Examples: 3 examples showing programmatic message sending

Each example focuses on one specific aspect of the plugin, building progressively in complexity.

Quick Reference

Configuration Examples (Automatic Notifications)

Example	Feature	Complexity
Example 1: Minimal Setup	Enable notifications	⭐
Example 2: Notification Control	Control when to notify	⭐
Example 3: Message Text	Customize message text	⭐⭐
Example 4: Message Colors	Customize message colors	⭐⭐
Example 5: Custom Fields	Add custom fields	⭐⭐⭐
Example 6: Selective Fields	Choose default fields	⭐⭐⭐
Example 7: Footer Control	Control timestamp footer	⭐
Example 8: Specific Channel ID	Send to specific channel	⭐
Example 9: Threaded Messages	Group messages in thread	⭐⭐

Script Examples (Programmatic Messages)

Example	Feature	Complexity
Script Example 1	Send from workflow body	⭐⭐
Script Example 2	Send using onComplete	⭐⭐
Script Example 3	Send from channel operators	⭐⭐⭐

Getting Started

Prerequisites

Set up your Bot Token:

export SLACK_BOT_TOKEN='xoxb-your-bot-token'

See the Installation Guide for detailed setup instructions.

Running Examples

Configuration examples are run by applying them to any workflow:

# Clone the repository
git clone https://github.com/seqeralabs/nf-slack.git
cd nf-slack

# Run with a configuration example
nextflow run example/main.nf -c example/configs/01-minimal.config

Script examples are complete workflows:

# Run a script example directly
nextflow run example/scripts/01-message-in-workflow.nf

---

Configuration Examples

Configuration examples show how to set up automatic workflow notifications using the plugin's configuration options.

Example 1: Minimal Setup

Concept: Just enable notifications with defaults

Configuration:

01-minimal.config

slack {
    bot {
        token = System.getenv('SLACK_BOT_TOKEN')
        channel = 'general'
    }
}

What you get:

• ✅ Notifications on start, complete, and error
• ✅ Default message templates
• ✅ Default formatting

Use when: You want to enable notifications quickly without customization

Output:

---

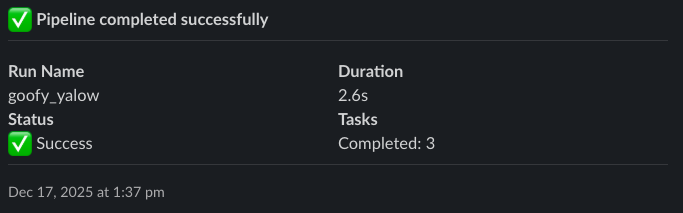

Example 2: Notification Control

Concept: Choose which events trigger notifications

New concepts:

• onStart.enabled - Control start notifications
• onComplete.enabled - Control completion notifications
• onError.enabled - Control error notifications

Configuration:

02-notification-control.config

slack {
    bot {
        token = System.getenv('SLACK_BOT_TOKEN')
        channel = 'general'
    }

    onStart {
        enabled = false      // Don't notify on start
    }

    onComplete {
        enabled = true       // DO notify on completion
    }

    onError {
        enabled = true       // DO notify on error
    }
}

Use when: You want to reduce notification noise (e.g., only errors and completions)

Output:

---

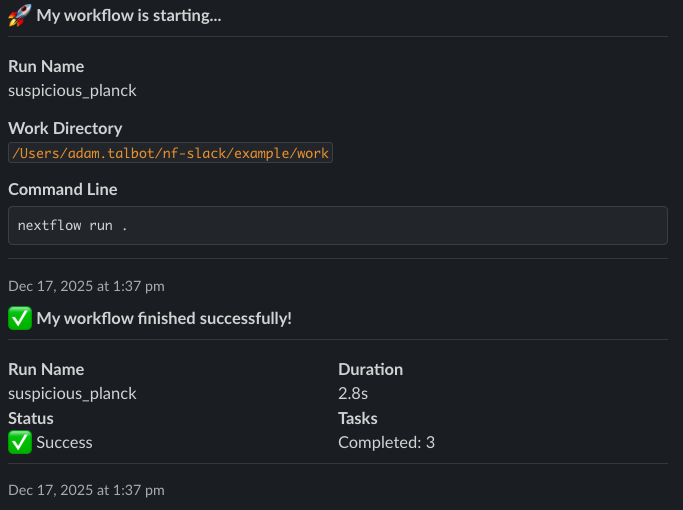

Example 3: Message Text Customization

Concept: Customize the text in notification messages

New concepts:

• onStart.message - Custom text for start notifications
• onComplete.message - Custom text for completion notifications
• onError.message - Custom text for error notifications

Configuration:

03-message-text.config

slack {
    bot {
        token = System.getenv('SLACK_BOT_TOKEN')
        channel = 'general'
    }

    onStart {
        message = '🚀 *My workflow is starting...*'
    }

    onComplete {
        message = '✅ *My workflow finished successfully!*'
    }

    onError {
        message = '❌ *My workflow failed!*'
    }
}

Supports: Slack markdown formatting (*bold*, _italic_, `code`)

Use when: You want different message text than the defaults

Output:

---

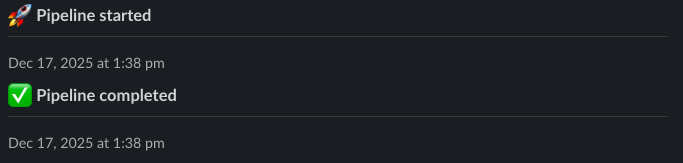

Example 4: Message Colors

Concept: Use custom colors for message attachments

New concepts:

• Map-based message configuration
• color property for hex color codes

Configuration:

04-message-colors.config

slack {
    bot {
        token = System.getenv('SLACK_BOT_TOKEN')
        channel = 'general'
    }

    onStart {
        message = [
            text: '🚀 *Pipeline started*',
            color: '#3AA3E3'  // Blue
        ]
    }

    onComplete {
        message = [
            text: '✅ *Pipeline completed*',
            color: '#2EB887'  // Green
        ]
    }

    onError {
        message = [
            text: '❌ *Pipeline failed*',
            color: '#A30301'  // Red
        ]
    }
}

Map structure:

• text - Message text (same as string format)
• color - Hex color code (e.g., '#FF5733')

Use when: You want visual distinction with custom colors

Output:

---

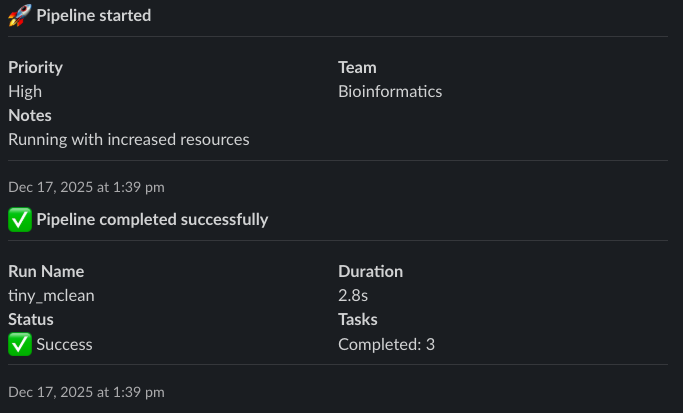

Example 5: Custom Fields

Concept: Add your own custom information fields

New concepts:

• customFields array for additional information
• Field properties: title, value, short

Configuration:

05-custom-fields.config

slack {
    bot {
        token = System.getenv('SLACK_BOT_TOKEN')
        channel = 'general'
    }

    onStart {
        message = [
            text: '🚀 *Pipeline started*',
            color: '#3AA3E3',
            customFields: [
                [title: 'Priority', value: 'High', short: true],
                [title: 'Team', value: 'Bioinformatics', short: true],
                [title: 'Notes', value: 'Running with increased resources', short: false]
            ]
        ]
    }
}

Field structure:

• title - Field label (required)
• value - Field content (required)
• short - Layout: true = columns (2 per row), false = full width

Use when: You want to add extra context to messages

Output:

---

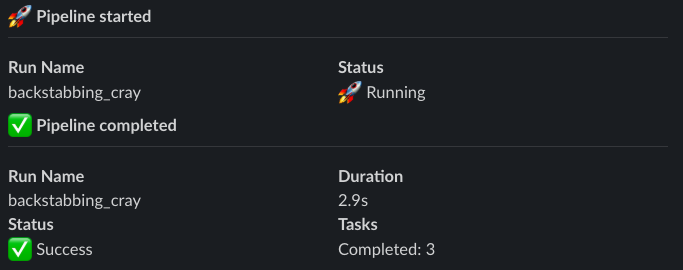

Example 6: Selective Default Fields

Concept: Choose which built-in workflow information to include

New concepts:

• includeFields array to select default workflow fields
• Fine-grained control over message content

Configuration:

06-selective-fields.config

slack {
    bot {
        token = System.getenv('SLACK_BOT_TOKEN')
        channel = 'general'
    }

    onStart {
        message = [
            text: '🚀 *Pipeline started*',
            color: '#3AA3E3',
            includeFields: ['runName', 'status']
        ]
    }

    onComplete {
        message = [
            text: '✅ *Pipeline completed*',
            color: '#2EB887',
            includeFields: ['runName', 'duration', 'status', 'tasks']
        ]
    }

    onError {
        message = [
            text: '❌ *Pipeline failed*',
            color: '#A30301',
            includeFields: ['runName', 'duration', 'errorMessage', 'failedProcess']
        ]
    }
}

Available fields by event:

All messages:

• runName - Nextflow run name
• status - Workflow status

Start messages only:

• commandLine - Command used to launch workflow
• workDir - Work directory path

Complete messages only:

• duration - How long the workflow ran
• tasks - Task statistics (cached, completed, failed)

Error messages only:

• duration - How long before failure
• errorMessage - Error details
• failedProcess - Which process failed

Important

If you use map-based config without includeFields, NO default fields are included (only your customFields if specified).

Use when: You want fine-grained control over what information appears

Output:

---

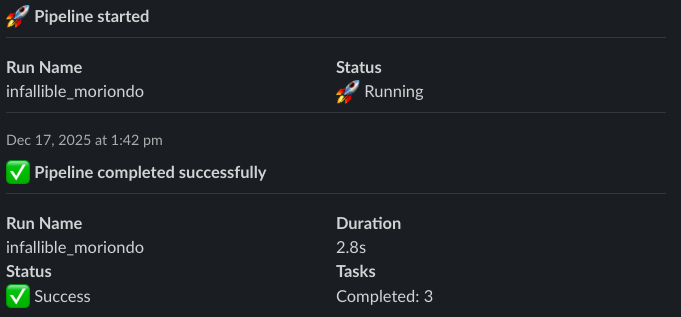

Example 7: Footer Control

Concept: Control whether messages include a timestamp footer

New concepts:

• showFooter - Enable/disable timestamp footer per event

Configuration:

07-footer-control.config

slack {
    bot {
        token = System.getenv('SLACK_BOT_TOKEN')
        channel = 'general'
    }

    onStart {
        showFooter = true    // Show timestamp (default)
    }

    onComplete {
        showFooter = false   // Hide footer for cleaner look
    }

    onError {
        showFooter = true    // Show timestamp on errors
    }
}

Use when: You want to reduce visual clutter by hiding timestamps on routine notifications.

---

Example 8: Specific Channel ID

Concept: Send notifications to a specific channel by ID

Configuration:

08-channel-id.config

slack {
    bot {
        token = System.getenv('SLACK_BOT_TOKEN')
        // You can use a channel ID (e.g. 'C12345678') or a channel name
        channel = 'C12345678'
    }
}

Use when: You want to send notifications to a specific channel by ID instead of name.

---

Example 9: Threaded Messages

Concept: Group all workflow notifications (start, complete, error) into a single thread

New concepts:

• useThreads - Enable threading to reduce channel clutter
• Each workflow run creates a new thread automatically

Configuration:

09-threaded-messages.config

slack {
    bot {
        token = System.getenv('SLACK_BOT_TOKEN')
        channel = 'general'
        useThreads = true  // Group all workflow messages in a thread
    }

    onStart {
        message = '🚀 *Pipeline started*'
    }

    onComplete {
        message = '✅ *Pipeline completed successfully*'
    }

    onError {
        message = '❌ *Pipeline failed*'
    }
}

How it works:

1. The initial "workflow started" message creates a new thread
2. Subsequent messages (complete/error) are posted as replies to that thread
3. Custom messages sent via slackMessage() are also posted in the thread
4. Each new workflow run creates a separate thread

Important notes:

• ⚠️ Threading only works with bot tokens (see Threading configuration for details)
• ✅ Reduces channel clutter by keeping related messages together
• ✅ Each workflow run gets its own thread
• ✅ Custom slackMessage() calls are automatically included in the thread

Use when: You want to keep workflow notifications organized and reduce noise in busy channels.

---

Script Examples

Script examples demonstrate how to use the slackMessage() function programmatically within your Nextflow workflows.

Disable Automatic Notifications

These examples disable automatic notifications to avoid duplicate messages. Adjust your configuration:

slack {
    bot {
        token = System.getenv("SLACK_BOT_TOKEN")
        channel = 'general'
    }

    onStart.enabled = false
    onComplete.enabled = false
    onError.enabled = false
}

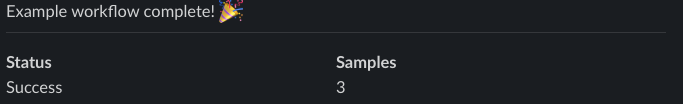

Script Example 1: Message in Workflow

Concept: Send a message from the workflow body after processes complete

Code:

01-message-in-workflow.nf

#!/usr/bin/env nextflow

// Import the Slack messaging function
include { slackMessage } from 'plugin/nf-slack'

process HELLO {
    input:
    val sample_id

    output:
    stdout

    script:
    """
    echo "Processing sample: ${sample_id}"
    sleep 2  # Simulate some work
    echo "${sample_id}_processed"
    """
}

workflow {
    inputs = channel.of('sample_1', 'sample_2', 'sample_3')
    HELLO(inputs)

    // Send rich formatted completion message
    slackMessage([
        message: "Example workflow complete! 🎉",
        color: "#2EB887",  // Green for success
        fields: [
            [title: "Status", value: "Success", short: true],
            [title: "Samples", value: "3", short: true]
        ]
    ])
}

Key features:

• Uses slackMessage() function directly in workflow body
• Sends message after processes complete
• Supports same map format as config examples

Use when: You want to send a message at a specific point in your workflow logic

Output:

---

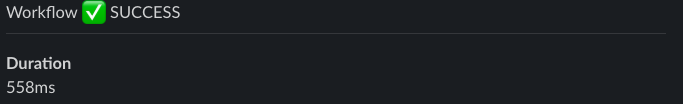

Script Example 2: Message on Complete

Concept: Send a message using the workflow.onComplete event handler

Code:

02-message-on-complete.nf

#!/usr/bin/env nextflow

include { slackMessage } from 'plugin/nf-slack'

process HELLO {
    input:
    val sample_id

    output:
    stdout

    script:
    """
    echo "Processing sample: ${sample_id}"
    """
}

workflow {
    inputs = channel.of('sample_1', 'sample_2', 'sample_3')
    HELLO(inputs)

    // Send message when workflow completes
    workflow.onComplete = {
        def status = workflow.success ? '✅ SUCCESS' : '❌ FAILED'
        def color = workflow.success ? '#2EB887' : '#A30301'

        slackMessage([
            message: "Workflow ${status}",
            color: color,
            fields: [
                [title: "Duration", value: "${workflow.duration}", short: true]
            ]
        ])
    }
}

Key features:

• Uses workflow.onComplete event handler
• Access to workflow metadata (success status, duration, etc.)
• Conditional message formatting based on success/failure

Use when: You want to send a summary message when the workflow finishes, with access to workflow metadata

Output:

---

Script Example 3: Message within Channel

Concept: Send messages from within channel operators during processing

Code:

03-message-within-channel.nf

#!/usr/bin/env nextflow

include { slackMessage } from 'plugin/nf-slack'

process HELLO {
    input:
    val sample_id

    output:
    stdout

    script:
    """
    echo "Processing sample: ${sample_id}"
    """
}

workflow {
    inputs = channel.of('sample_1', 'sample_2', 'sample_3')
        .map { sample ->
            // Send a message for each item
            slackMessage("⚙️ Processing ${sample}")
            return sample
        }

    HELLO(inputs)
}

Key features:

• Uses slackMessage() within channel operator (.map)
• Sends individual messages for each channel item
• Simple string format for quick notifications

High Volume Usage

Be cautious when sending messages in channel operators with many items. Slack has rate limits on incoming webhooks, and sending too many messages rapidly may result in throttling.

Use when: You want to send notifications during data processing, tracking progress through a channel

Output:

---

Next Steps

• Explore the API Reference for complete configuration options
• Learn about automatic notifications
• Discover custom messages

All Example Files

All example files are available in the nf-slack repository:

• Configuration examples: example/configs/
• Script examples: example/scripts/
• Base workflow: example/main.nf
